ARA magnetic speed sensors

AS Equivalent to USA Brand

ARA magnetic speed sensors

AS Equivalent to USA Brand

Slide 1
REQUEST A QUOTE

1). TARM58050

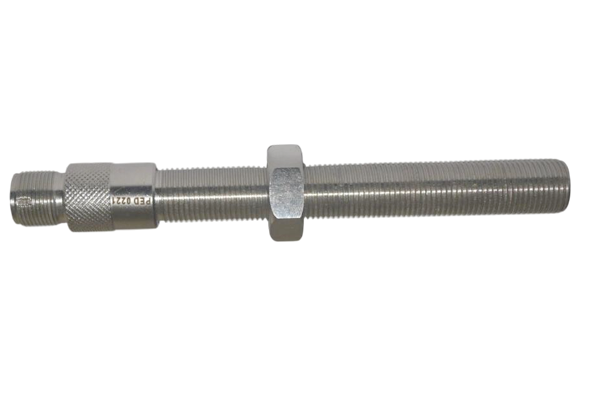

5/8-18 UNF Magnetic Speed Sensor TARM58050
Material Construction: SS304 Non magnetic
Threading: 5/8” 18UNF with GO, NOGO Gauge Passed
Threading Length: 1.96” [50 mm]
Connector : Mating with Military-Style Connector P.NO. MS3106A10SL-4S
Operating Temperature: (-45 ºC to +115 ºC)
Coil Resistance: 1500 ± 100 Ohms
Output: Single Sine wave Output
Output type : Single output
Available for hazardous location installation (not certified)
Slide 1
REQUEST A QUOTE

2). TARM58076

5/8-18 UNF Magnetic Speed Sensor TARM58076
Material Construction: SS304 Non magnetic
Threading: 5/8” 18UNF with GO,NOGO Gauge Passed
Threading Length: 2.99” [76 mm]
Connector : Mating with Military-Style Connector P.NO. MS3106A10SL-4S
Operating Temperature: (-45 ºC to +115 ºC)
Coil Resistance: 1500 ± 100 Ohms
Output: Single Sine wave Output
Output type : Single output
Available for hazardous location installation (not certified)
Slide 1
REQUEST A QUOTE

3). TARM580114

5/8-18 UNF Magnetic Speed Sensor TARM580114
Material Construction: SS304 Non magnetic
Threading: 5/8” 18UNF with GO,NOGO Gauge Passed
Threading Length: 4.48” [114 mm]
Connector : Mating with Military-Style Connector P.NO. MS3106A10SL-4S
Operating Temperature: (-45 ºC to +115 ºC)
Coil Resistance: 1500 ± 100 Ohms
Output: Single Sine wave Output
Output type : Single output
Available for hazardous location installation (not certified)
Slide 1
REQUEST A QUOTE

4). TARM580152

5/8-18 UNF Magnetic Speed Sensor TARM580152
Material Construction: SS304 Non magnetic
Threading: 5/8” 18UNF with GO,NOGO Gauge Passed
Threading Length: 5.98” [152 mm]
Connector : Mating with Military-Style Connector P.NO. MS3106A10SL-4S
Operating Temperature: (-45 ºC to +115 ºC)
Coil Resistance: 1500 ± 100 Ohms
Output: Single Sine wave Output
Output type : Single output
Available for hazardous location installation (not certified)
