Carina magnetic speed sensors

AS Equivalent to USA Brand

Carina magnetic speed sensors

AS Equivalent to USA Brand

Slide 1
REQUEST A QUOTE

1). TCAM34090

3 /4 “ -16 UNF Magnetic Speed Sensor TCAM34090
Material Construction: Aluminium
Threading: 3/4” 16UNF with GO,NOGO Gauge Passed
Threading Length: 3.54” [90 mm]
Connector : no connector Harness 1000mm long with flying leads
Operating Temperature: (-45 ºC to +115 ºC)
Coil Resistance: 1500 ± 100 Ohms
Output: Single Sine wave Output
Output type : Single output
Available for hazardous location installation (not certified)
Slide 1
REQUEST A QUOTE

2). TCADM34090

3 /4 “ -16 UNF Magnetic Speed Sensor TCAM34090
Material Construction: Aluminium
Threading: 3/4” 16UNF with GO,NOGO Gauge Passed
Threading Length: 3.54” [90 mm]
Connector : no connector Harness 1000mm long with flying leads
Operating Temperature: (-45 ºC to +115 ºC)
Coil Resistance: 1500 ± 100 Ohms
Output: Single Sine wave Output
Output type : Dual output
Available for hazardous location installation (not certified)
Slide 1
REQUEST A QUOTE

3). TCADM762MS

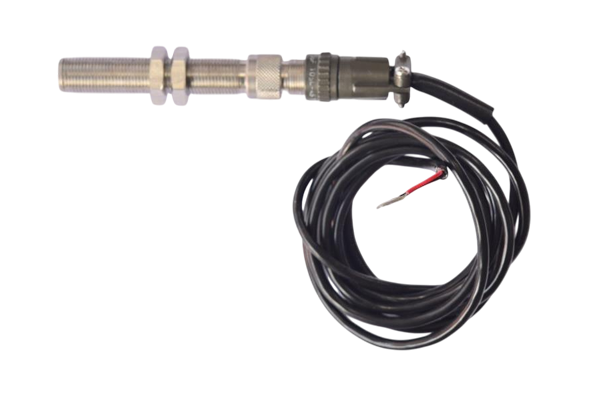

3 / 4” -16 UNF Magnetic Speed Sensor TCADM762MS
Material Construction: SS304 Non magnetic
Threading: 3/4” 16UNF with GO,NOGO Gauge Passed
Threading Length: 2.99” [76 mm]
Connector : 2 Pin Military-Style Connector male
Operating Temperature: (-45 ºC to +115 ºC)
Coil Resistance: 1500 ± 100 Ohms
Output: Single Sine wave Output
Output type : Single output
Available for hazardous location installation (not certified)
Slide 1
REQUEST A QUOTE

4). TCADM764MS

3 /4” -16 UNF Dual Magnetic Speed Sensor TCADM764MS
Material Construction: SS304 Non magnetic
Threading: 3/4” 18UNF with GO,NOGO Gauge Passed
Threading Length: 2.99” [76 mm]
Connector : 4 Pin Military-Style Connector Male
Operating Temperature: (-45 ºC to +115 ºC)
Coil Resistance: 1500 ± 100 Ohms
Output: Single Sine wave Output
Output type : Dual output
Available for hazardous location installation (not certified)
