Grus magnetic speed sensors

AS Equivalent to USA Brand

Grus magnetic speed sensors

AS Equivalent to USA Brand

Slide 1
REQUEST A QUOTE

1). TGRM58050

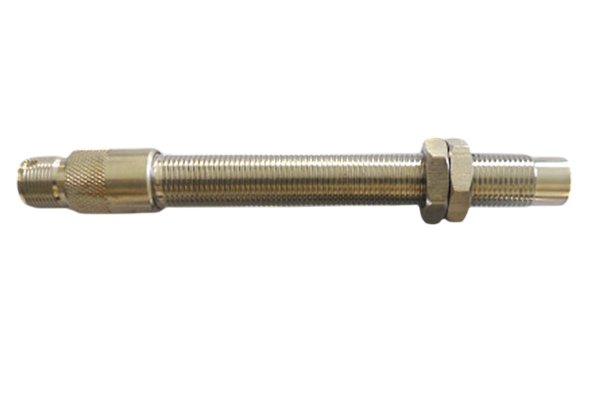

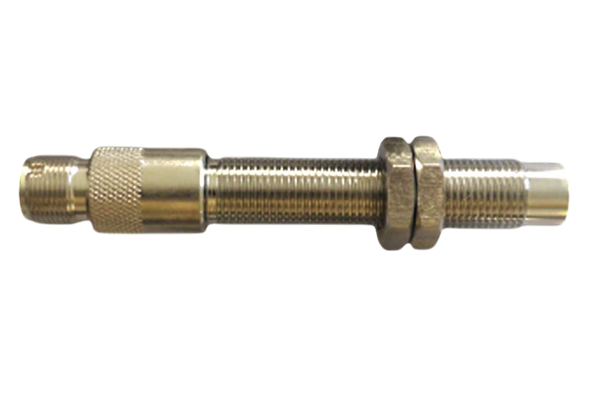

5/8-18 UNF Magnetic Speed Sensor TGRM58050
Material Construction: SS304 Non magnetic
Threading: 5/8” 18UNF with GO,NOGO Gauge Passed
Threading Length: 1.96” [50 mm]
Connector : Mating with Military-Style Connector P.NO. MS3106A10SL-4S
Operating Temperature: (-45 ºC to +115 ºC)
Coil Resistance: 1500 ± 100 Ohms
Output: Single Sine wave Output
Output type : Single output
Available for hazardous location installation (not certified)
Slide 1
REQUEST A QUOTE

2). TGRM58076

5/8-18 UNF Magnetic Speed Sensor TGRM58076
Material Construction: SS304 Non magnetic
Threading: 5/8” 18UNF with GO,NOGO Gauge Passed
Threading Length: 2.99” [76 mm]
Connector : Mating with Military-Style Connector P.NO. MS3106A10SL-4S
Operating Temperature: (-45 ºC to +115 ºC)
Coil Resistance: 1500 ± 100 Ohms
Output: Single Sine wave Output
Output type : Single output
Available for hazardous location installation (not certified)
Slide 1
REQUEST A QUOTE

3). TGRM580114

5/8-18 UNF Magnetic Speed Sensor TGRM580114
Material Construction: SS304 Non magnetic
Threading: 5/8” 18UNF with GO,NOGO Gauge Passed
Threading Length: 4.48” [114 mm]
Connector : Mating with Military-Style Connector P.NO. MS3106A10SL-4S
Operating Temperature: (-45 ºC to +115 ºC)
Coil Resistance: 1500 ± 100 Ohms
Output: Single Sine wave Output
Output type : Single output
Available for hazardous location installation (not certified)
Slide 1
REQUEST A QUOTE

4). TGRM762MS

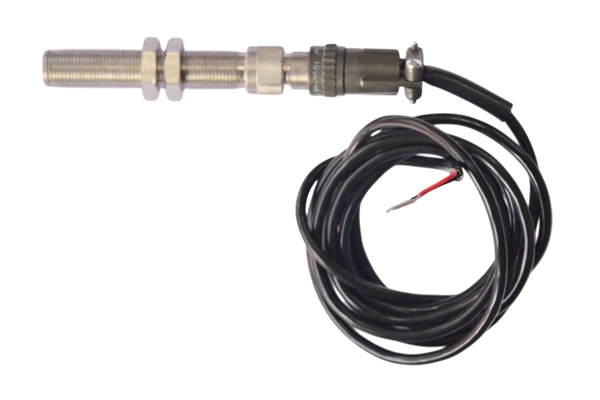

5/8-18 UNF Magnetic Speed Sensor TGRM762MS
Material Construction: SS304 Non magnetic
Threading: 5/8” 18UNF with GO,NOGO Gauge Passed
Threading Length: 2.99” [76 mm]
Connector : 2 Pin Military-Style Connector male
Operating Temperature: (-45 ºC to +115 ºC)
Coil Resistance: 1500 ± 100 Ohms
Output: Single Sine wave Output
Output type : Single output
Available for hazardous location installation (not certified)
Slide 1
REQUEST A QUOTE

5). TGRM764MS

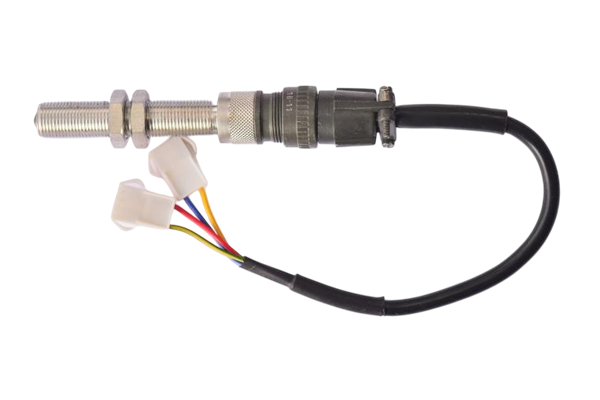

5/8-18 UNF Dual Magnetic Speed Sensor TGRM764MS
Material Construction: SS304 Non magnetic
Threading: 5/8” 18UNF with GO,NOGO Gauge Passed
Threading Length: 2.99” [76 mm]
Connector : 4 Pin Military-Style Connector Male
Operating Temperature: (-45 ºC to +115 ºC)
Coil Resistance: 1500 ± 100 Ohms
Output: Single Sine wave Output
Output type : Dual output
Available for hazardous location installation (not certified)
