Mensa magnetic speed sensor with DRPM, Digital Tachohour Meters, CAT Tachohour Meters

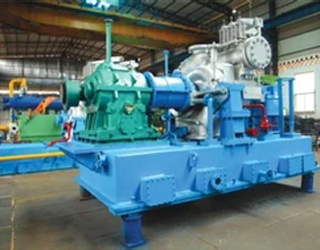

Sugar Mill Steam Turbines

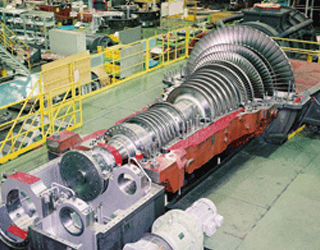

Marine Steam Turbines

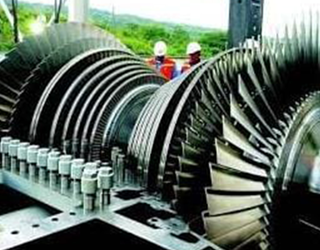

Power generation Turbines

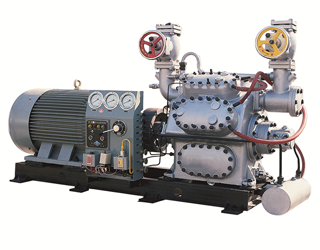

Reciprocating compressors

AS Equivalent to USA Brand

1). RT-MEM58076RI

5/8-18 UNF Magnetic Speed Sensor RT-MEM58076RI

Material Construction: SS304 Non magnetic

Connector : no connector Harness 300mm long

Operating Temperature: (-45 ºC to +115 ºC)

Coil Resistance: 1500 ± 100 Ohms

Output: Single Sine wave Output

Output type : Single output

Available for hazardous location installation (not certified)

Threading Length: 76 mm (~3")

REQUEST A QUOTE

2). RT-MEM58076RI

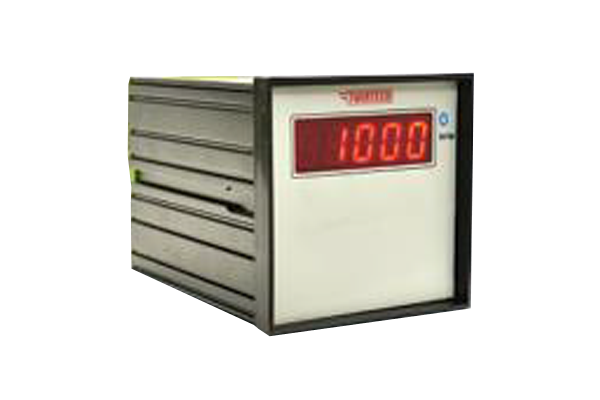

RPM Indicator + 5/8" 18UNF Threaded - MENSA Magnetic Speed Sensor

Material Construction: SS304 Non magnetic

Threading: 5/8" 18UNF with GO, NOGO Gauge Passed

Connector: No connector, Harness 300mm long

Coil Resistance: 1500 ± 100 Ω

Threading Length: 76 mm (~3")

Supply: 9 to 32 V DC

Input: Magnetic Pickup

Display: 4 Digit LED Display

Teeth Gears Setting: By Android App

Accuracy: ± 1 RPM

Size: 96 X 96 X 50 mm

Mounting: Panel mounting

Clamp: C clamp for fitment
