TRI Hall Effect Speed Sensors, Digital Tachohour Meters, CAT Tachohour Meters

Hall Effect Speed Sensors Applications

Railways Systems

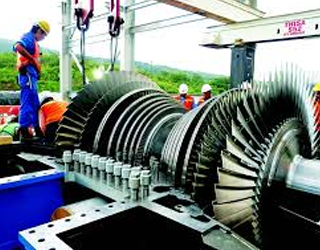

Power generation Turbines

Marine Propulsion Systems

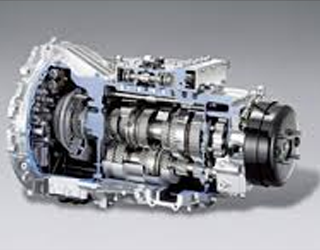

Clutch & Gearbox Transmission

TRI Hall Effect Speed Sensors

AS Equivalent to Germany Brand

REQUEST A QUOTE

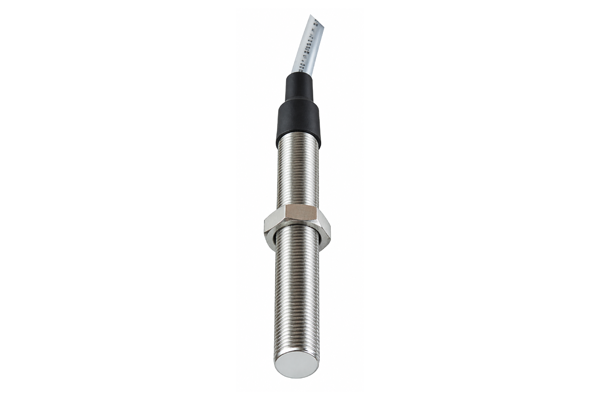

Part no. RT-TRH12M060

Supply: 9 to 24V DC

Output type: Open Collector / Push-pull

Output Signal: Square wave (digital)

Sensing Distance: 1 - 2 mm Max between sensor tip & gear tooth

Material Construction: SS304 Non magnetic

Threading: M12 X1 with GO,NOGO Gauge Passed

>Protection: Reverse polarity, short circuit

Cable: Harness 300mm long with flying leads

Threading length: 60 mm (~ 2.3")

REQUEST A QUOTE

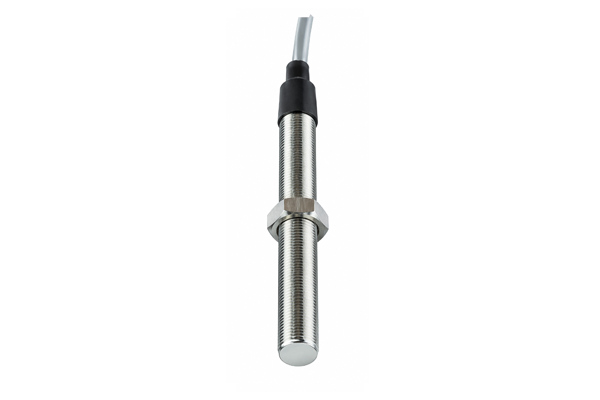

Part no. RT-TRH12M0100

Supply: 9 to 24V DC

Output type: Open Collector / Push-pull

Output Signal: Square wave (digital)

Sensing Distance: 1 - 2 mm Max between sensor tip & gear tooth

Material Construction: SS304 Non magnetic

Threading: M12 X1 with GO,NOGO Gauge Passed

Protection: Reverse polarity, short circuit

Cable: Harness 300mm long with flying leads

Threading length: 100 mm (~ 4")

REQUEST A QUOTE

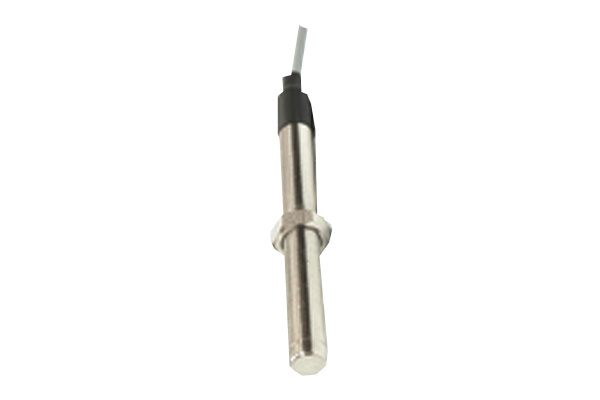

Part no. RT-TRH12M0120

Supply: 9 to 24V DC

Output type: Open Collector / Push-pull

Output Signal: Square wave (digital)

Sensing Distance: 1 - 2 mm Max between sensor tip & gear tooth

Material Construction: SS304 Non magnetic

Threading: M12 X1 with GO,NOGO Gauge Passed

Protection: Reverse polarity, short circuit

Cable: Harness 300mm long with flying leads

Threading length: 120 mm (~ 5")

REQUEST A QUOTE

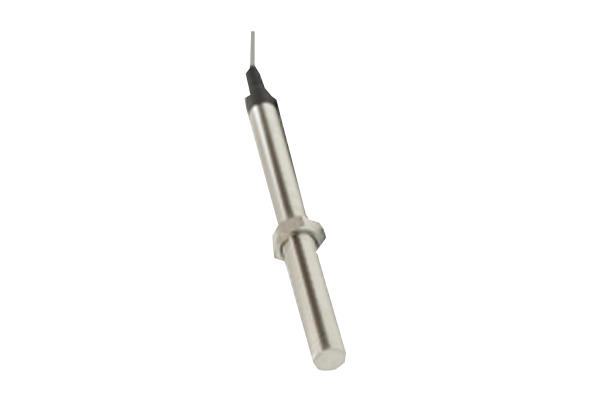

Part no. RT-TRH12M0140

Supply: 9 to 24V DC

Output type: Open Collector / Push-pull

Output Signal: Square wave (digital)

Sensing Distance: 1 - 2 mm Max between sensor tip & gear tooth

Material Construction: SS304 Non magnetic

Threading: M12 X1 with GO,NOGO Gauge Passed

Protection: Reverse polarity, short circuit

Cable: Harness 300mm long with flying leads

Threading length: 140 mm (~ 6")
